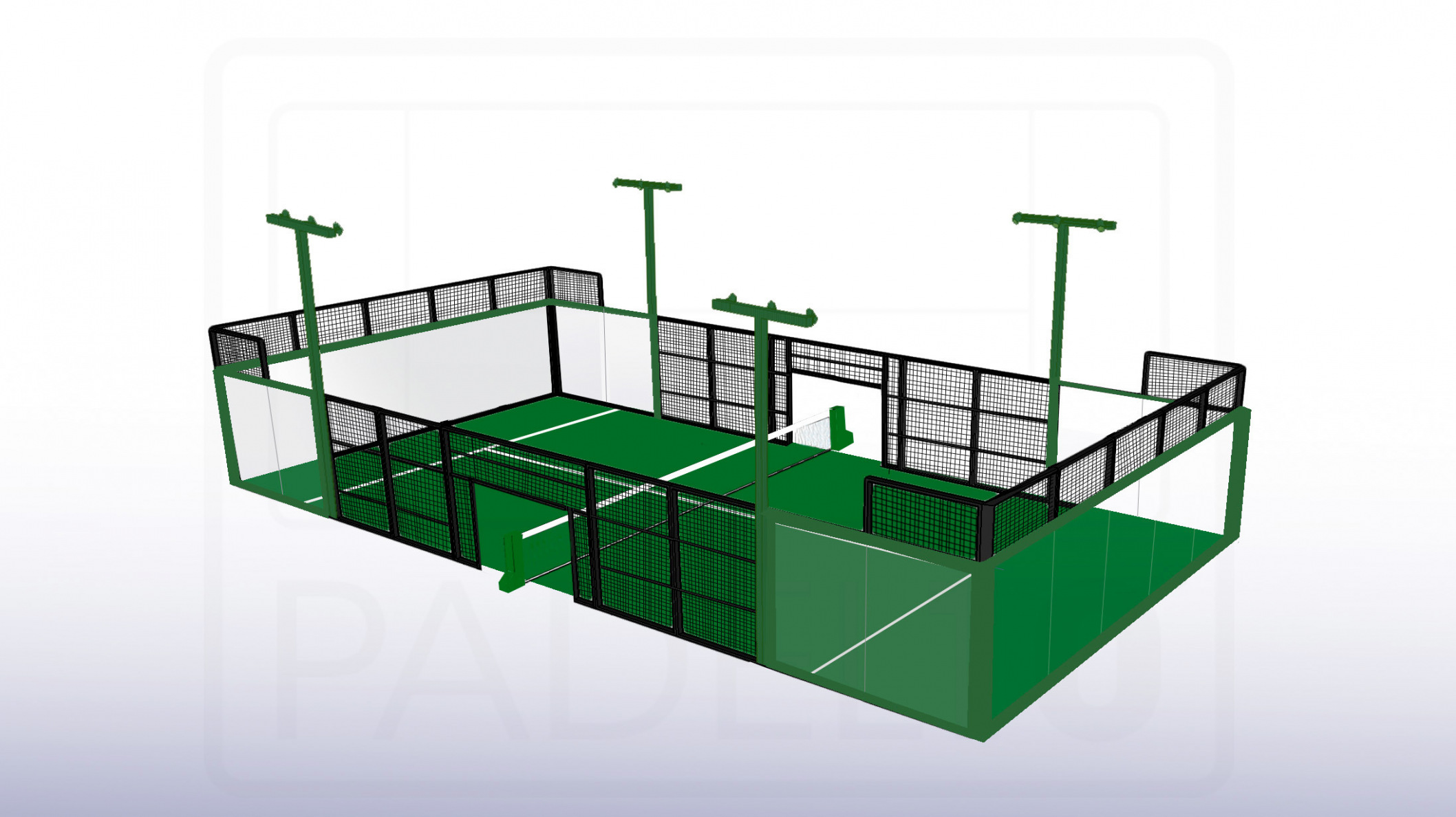

Normal Padel Court



Supply of metal structure built with ECO10 columns in 100 x 50 x 2mm tube. 40x40x2mm frame and electro-welded mesh. Execution: Galvanized and painted with polyester, color of your choice. Uniform anchoring of the construction by means of plugs with epoxy resin or expansion plugs.



TEMPERED GLASS, According to regulations of the International Padel Federation. You. Supply and installation of 18 panels of 3m x 2m of 10mm thick tempered glass of standard dimensions to cover gaps in the glass structure.



Supply of 4 lampposts with 8 150W LED spotlights integrated into the structure, including 3X2.5mm cables to the base of the post.



Artificial grass fibrillated model - - Composition: 100% polyethylene - Thread height: 13 mm - Stitches m2: 67,200 - Ditex thread: 5,500 Dtex - Color: Green - Filling: Quartz sand 0.2-0.8 mm (3,360 kg) Color blue or green.

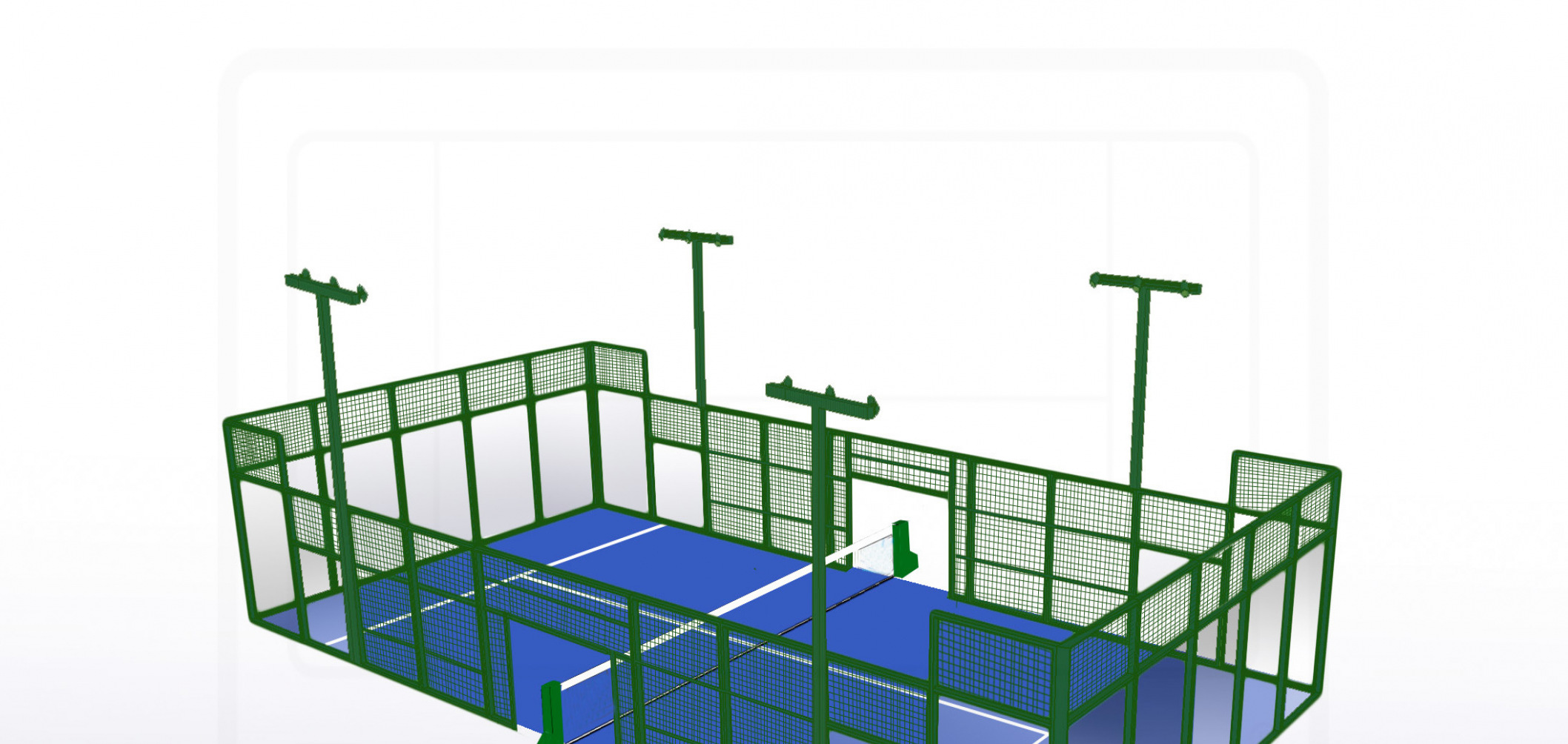

Full-Panoramic Court



Delivery of a TOP10 paddle court with panoramic galvanized profiles. Panoramic plaza of imposing design and specially designed to be installed as a central plaza for outdoor/indoor discos. Structure with arcades of 180x80x3 mm. The stove is made of galvanized steel and painted with epoxy paint.



TEMPERED GLASS, According to regulations of the International Padel Federation. You. Supply and placement of 18 12mm tempered glass panels of standard dimensions to cover holes in the structure.



Supply and installation of 4 lampposts integrated into the structure with 8 200W LED spotlights including 3X2.5mm cables to the base of the post.



Artificial grass fibrillated model - Composition: 100% polyethylene - Thread height: 13mm - Stitches m2: 67,200 - Threadditex: 5,500 Dtex - Color: Green - Filling: Quartz sand 0.2-0.8mm (3,360kg) Blue or green color.

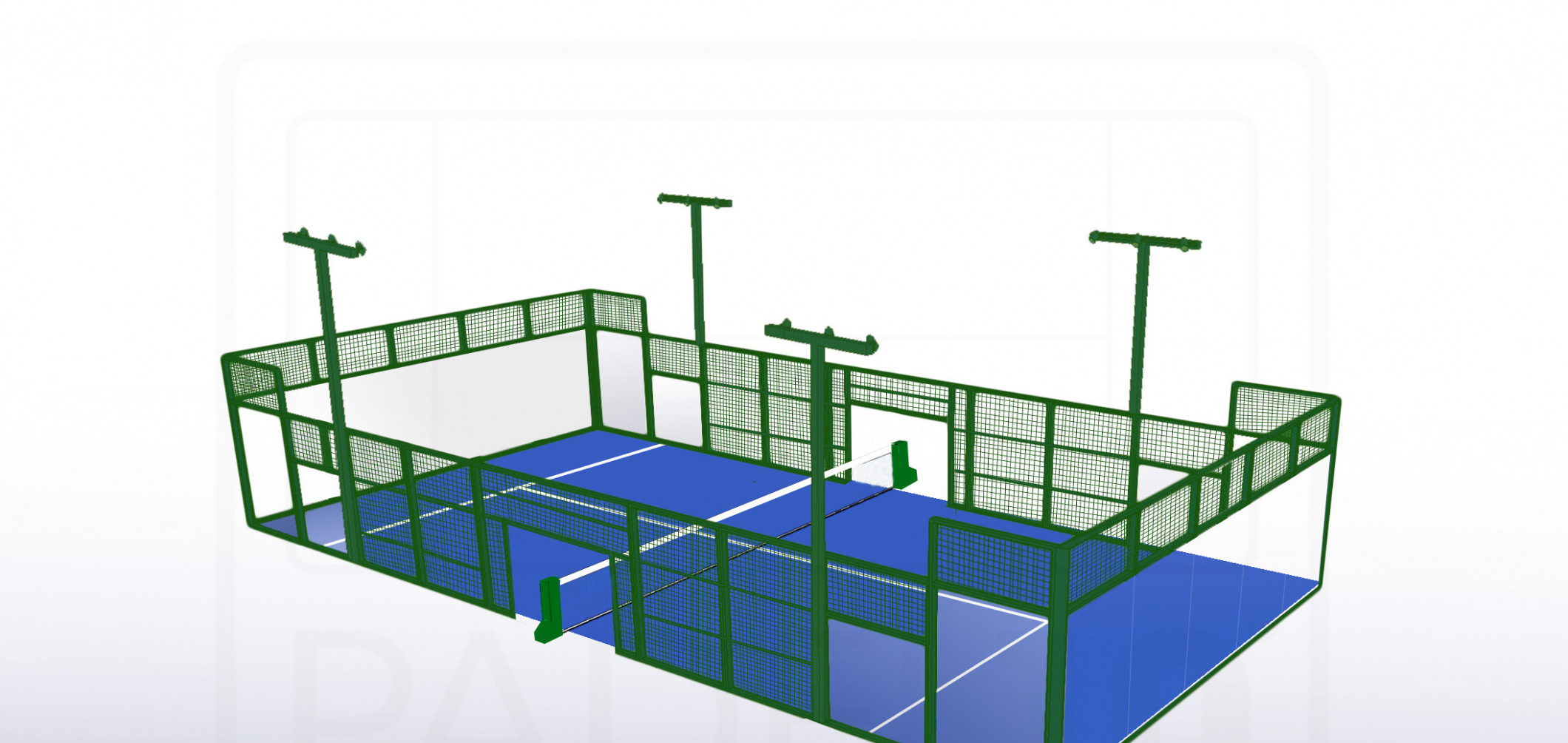

Semi-Panoramic Court



Supply of semi-panoramic galvanized profiles for paddle tennis courts. Portico of 120 x 120 x 4 mm and corner piers of 120 x 60 x 3 m braced to an 80 x 60 x 2 mm mesh pillar and flush glass. Execution: Galvanized and painted with polyester, color of your choice. Anchoring of the structure by means of plugs with epoxy resin. or expansion bolts.



TEMPERED GLASS, According to regulations of the International Padel Federation. You. Supply and placement of 18 3m x 2m panels of 12mm thick tempered glass of standard dimensions to cover gaps in the glass structure.



Supply and installation of 4 lampposts integrated into the structure with 8 200W LED spotlights including 3X2.5mm cables to the base of the pole.



Artificial grass fibrillated model - Composition: 100% polyethylene - Thread height: 13mm - Stitches m2: 67,200 - Threadditex: 5,500 Dtex - Color: Green - Filling: Quartz sand 0.2-0.8mm (3,360kg) Blue or green color .
